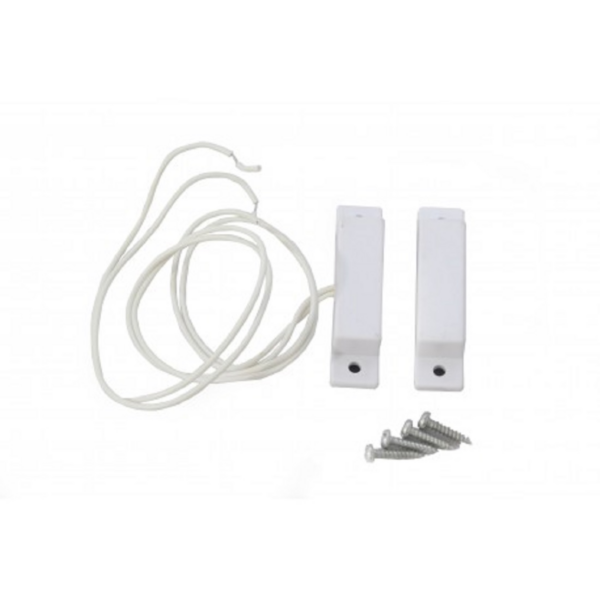

Length of sensor ( end to end ): 5.5 cm
Length of magnet ( end to end ): 5.5 cm
Length (screw hole to screw hole): 4.5 cm
width: 1.3 cm
depth: 1.2 cm
• Easy & Quick installation
• Longer Length Operate Gap ¾” (19mm) min.
* Note to Buyers: DO NOT CONNECT IT DIRECTLY TO ANY HIGH CURRENT LOAD.
It requires a driver circuit or Relay to connect to a high current load.
Over current through the sensor will instantly damage it.
If you have doubt about its use, plz explain us your application requirement (input voltage, load current etc.) before buying this item.
• Surface Mount with Screw and Adhesive tape (Optional) Mounting
• Side Flanges for Easy Mounting
• 18″ Long Wire Leads
Length of sensor: 5.5 cm (end to end)
Length of magnet: 5.5 cm (end to end)
width of sensor: 1.25 cm
width of magnet: 1.25 cm
height of sensor: 1.25 cm
height of magnet: 1.25 cm
• Operate Gap ¾” (19.0mm) min.
Reed Switch Specifications:
Contact Rating : 10W/VA
*** Switching Voltage (Max.) : 200 VDC
*** Switching Current (Max.) : 0.5 Amp.
Contact Resistance (Min.) : 150 milli ohms
Life Expectancy : 10x 10 6 Operations
Insulation Resistance : 10 9 ohms
Shock Resistance : 30G for 11mSec.
Vibration Resistance : 20G (10 to 1000Hz)
Magnets : ALINCO/ Rare Earth (Unless otherwise specified)
Plastic Material : ABS Plastic (Unless otherwise specified)
